Authentication

Clerk JWT Auth Policy

Authenticate requests with JWT tokens issued by Clerk. This is a customized version of the OpenId JWT Policy specifically for Clerk.

Configuration

The configuration shows how to configure the policy in the 'policies.json' document.


Code
{
  "name": "my-clerk-jwt-auth-inbound-policy",
  "policyType": "clerk-jwt-auth-inbound",
  "handler": {
    "export": "ClerkJwtInboundPolicy",
    "module": "$import(@zuplo/runtime)",
    "options": {
      "allowUnauthenticatedRequests": false,
      "frontendApiUrl": "https://verb-noun-00.clerk.accounts.dev",
      "oAuthResourceMetadataEnabled": false
    }
  }
}

Policy Configuration

name <string> - The name of your policy instance. This is used as a reference in your routes.
policyType <string> - The identifier of the policy. This is used by the Zuplo UI. Value should be clerk-jwt-auth-inbound.
handler.export <string> - The name of the exported type. Value should be ClerkJwtInboundPolicy.
handler.module <string> - The module containing the policy. Value should be $import(@zuplo/runtime).
handler.options <object> - The options for this policy. See Policy Options below.

Policy Options

The options for this policy are specified below. All properties are optional unless specifically marked as required.

frontendApiUrl (required) <string> - Your Clerk Frontend API URL, i.e. https://verb-noun-00.clerk.accounts.dev. Can be found in the Clerk portal: https://dashboard.clerk.com/last-active?path=api-keys.
allowUnauthenticatedRequests <boolean> - Allow unauthenticated requests to proceed. This is use useful if you want to use multiple authentication policies or if you want to allow both authenticated and non-authenticated traffic. Defaults to false.
oAuthResourceMetadataEnabled <boolean> - Enables OAuth 2.0 Protected Resource Metadata discovery (RFC 9728). When true, requests without a bearer token receive a 401 whose WWW-Authenticate header points resource_metadata at the /.well-known/oauth-protected-resource document for the request path and, when the OAuthProtectedResourcePlugin declares scopesSupported, lists those scopes in scope. Requires the OAuthProtectedResourcePlugin in zuplo.runtime.ts or a user-defined route at that path. Defaults to false.

Using the Policy

Adding Clerk authentication to your route takes just a few steps. Follow the instructions below to setup Clerk and the Clerk policy.

Setup Clerk

If you haven't already done so, create a Clerk account and follow one of their Quickstarts to create a client app that can obtain an access token.

In order to setup your policy in the API, you'll need to navigate to the Clerk Dashboard and Navigate to the API Keys section. Click Advanced at the bottom of the page and copy the value of the Frontend API URL. You'll use this value later in your API policy configuration.

Set Environment Variables

Before adding the policy, you'll need to create an environment variable to store the Clerk Frontend API URL.

In the Zuplo Portal open the Environment Variables section in the Settings tab.
Click Add new Variable and enter the name CLERK_FRONTEND_API_URL in the name field. Set the value to the value you copied previously from the Clerk dashboard.

Add the Clerk Policy

The next step is to add the Clerk JWT Auth policy to a route in your project.

In the Zuplo Portal open the Route Designer in the Files tab then click routes.oas.json.

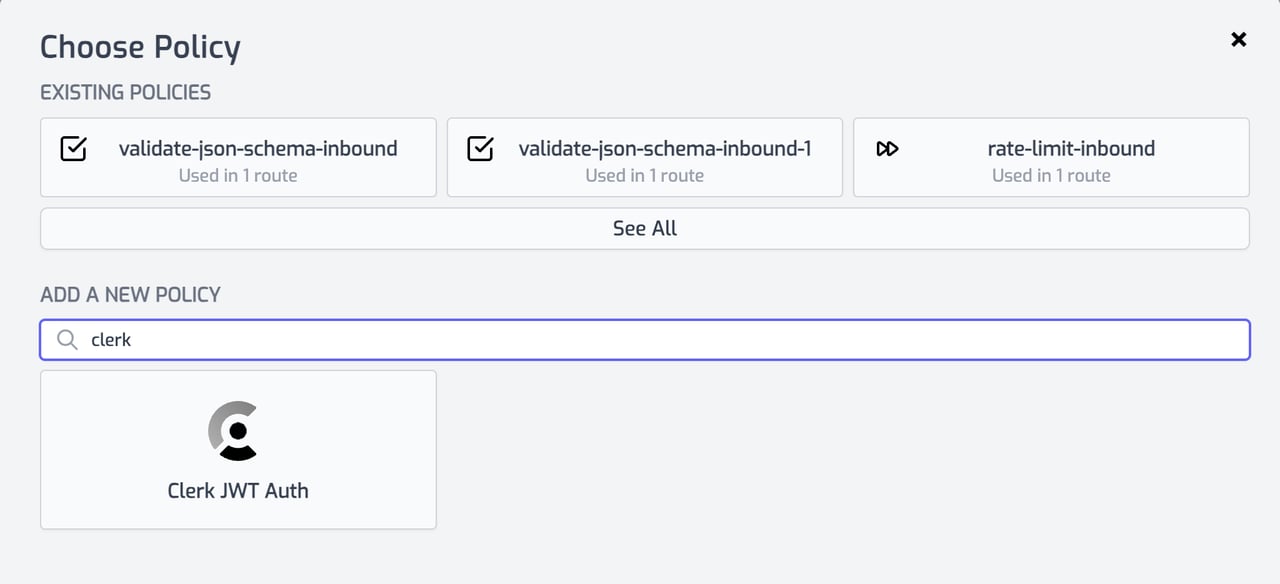

Select or create a route that you want to authenticate with Clerk. Expand the Policies section and click Add Policy. Search for and select the Clerk JWT Auth policy.

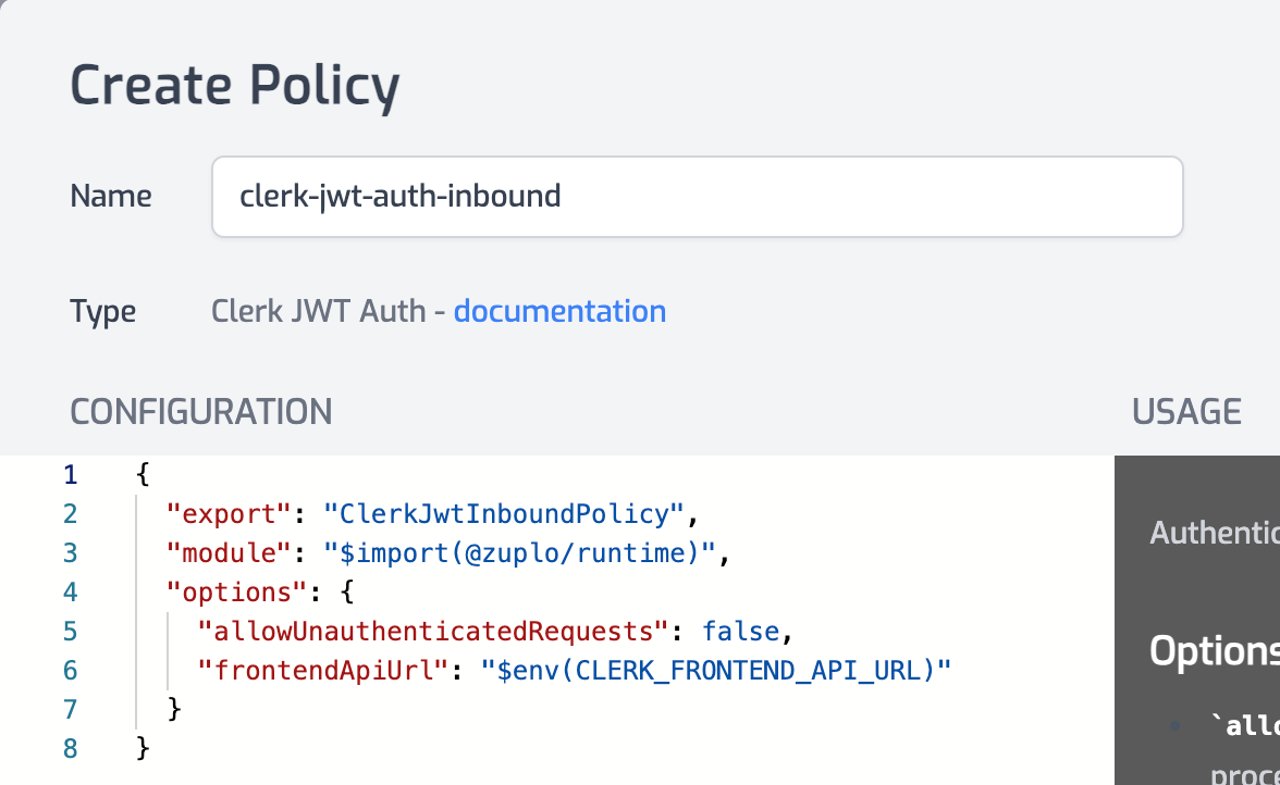

With the policy selected, notice that there is a property frontendApiUrl that are pre-populated with environment variable names that you set in the previous section.

Click OK to save the policy.

Test the Policy

Finally, you'll make two API requests to your route to test that authentication is working as expected.

In the route designer on the route you added the policy, click the Test button. In the dialog that opens, click Test to make a request.

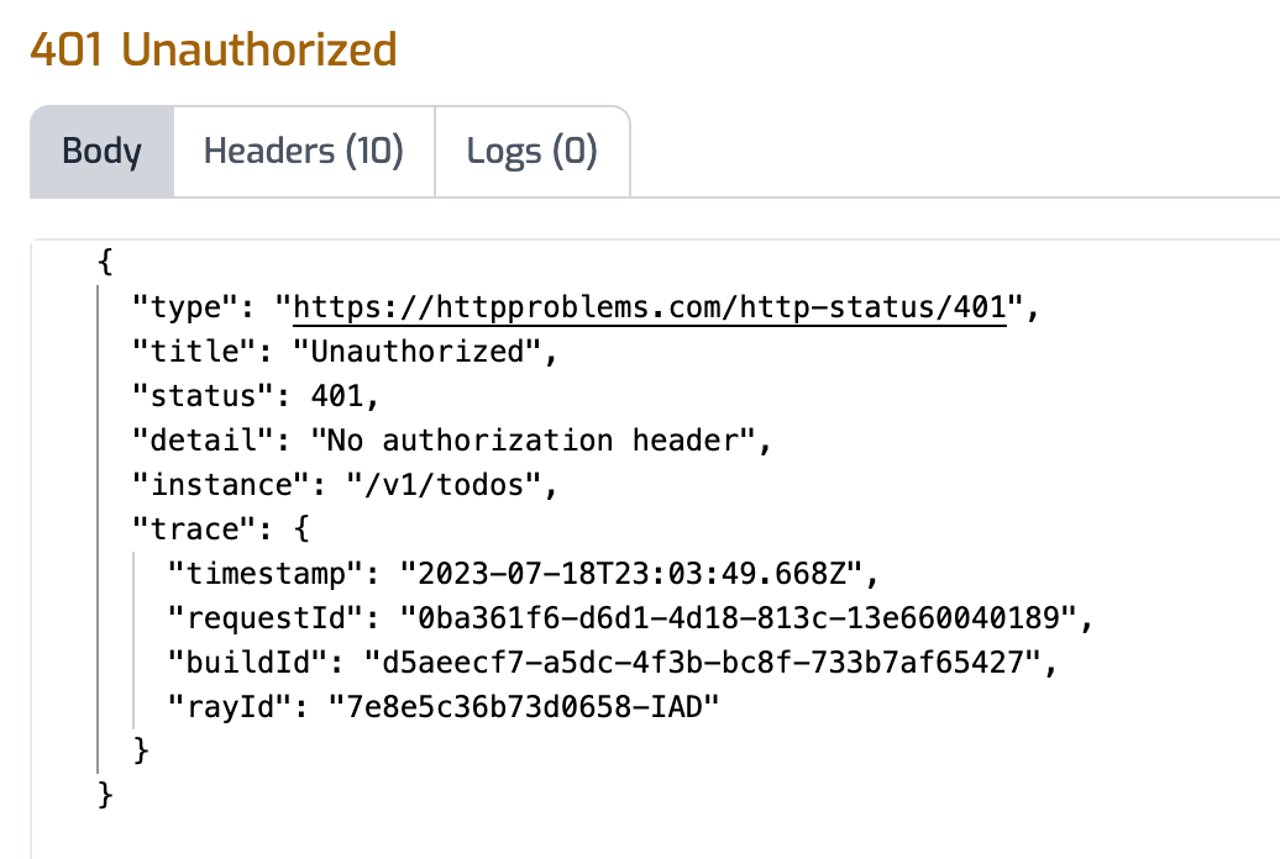

The API Gateway should respond with a 401 Unauthorized response.

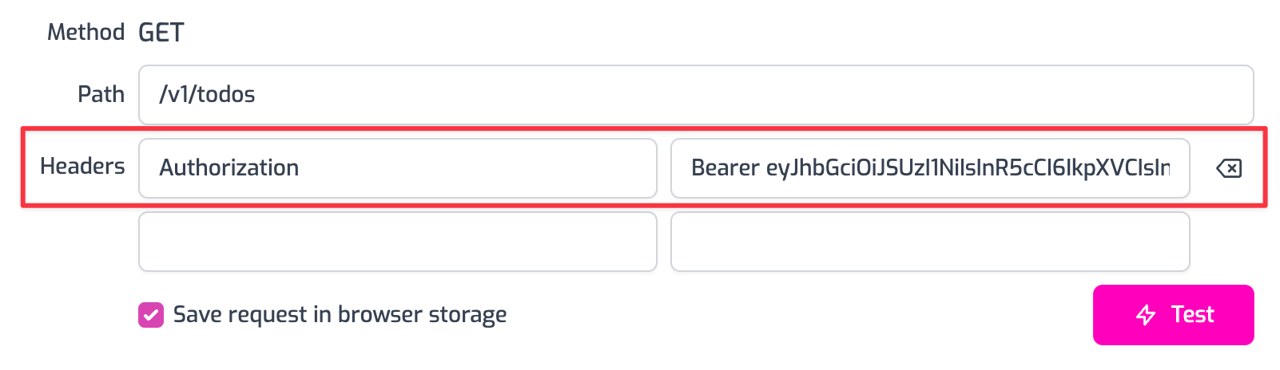

Now to make an authenticated request, add a header to the request called Authorization. Set the value of the header to Bearer YOUR_ACCESS_TOKEN replacing YOUR_ACCESS_TOKEN with the value of the Clerk access token retrieved from your client app.

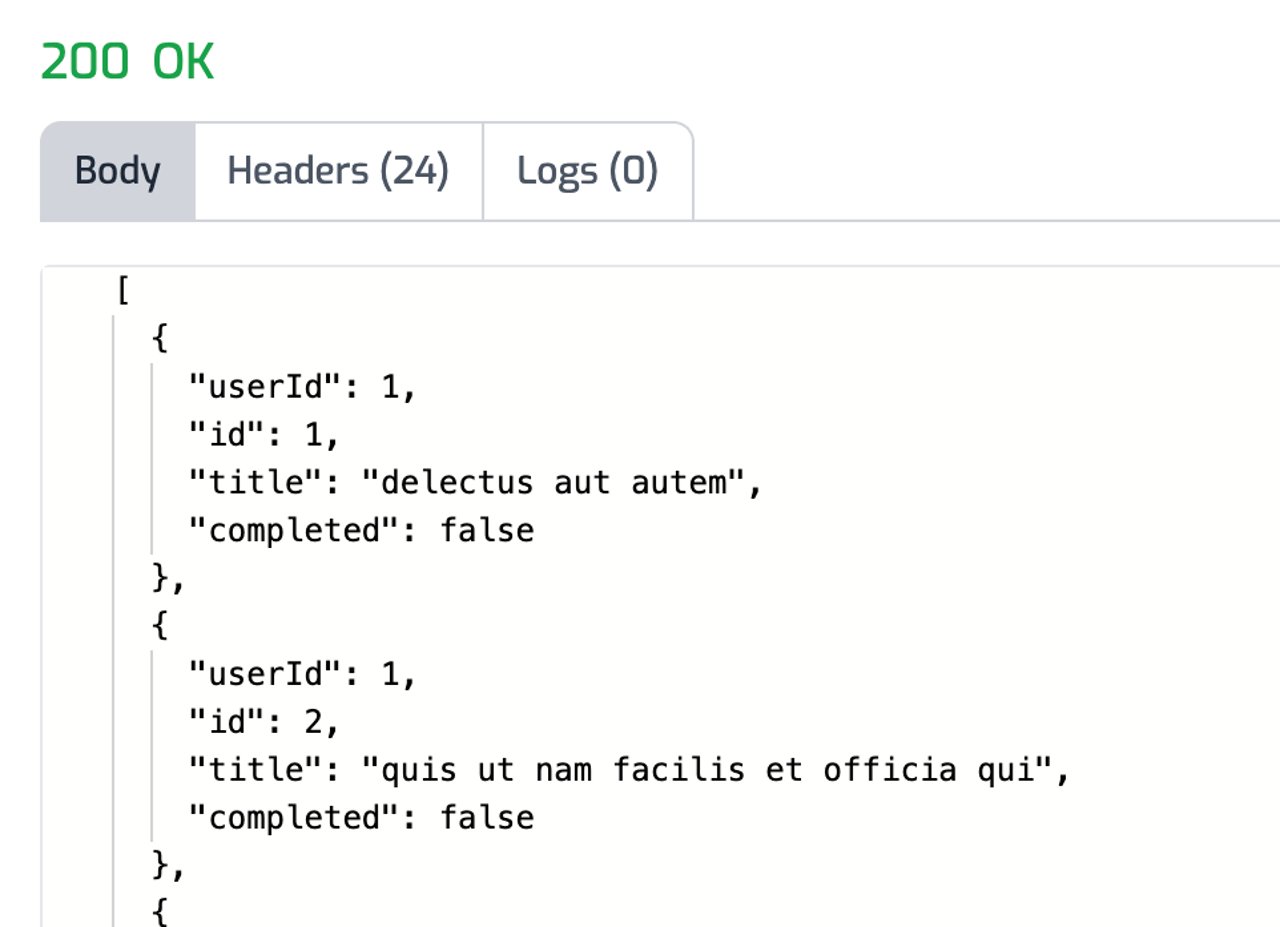

Click the Test button and a 200 OK response should be returned.

You have now setup Clerk JWT Authentication on your API Gateway.

OAuth 2.0 Protected Resource Metadata

The Clerk JWT Auth policy supports OAuth protected resource metadata discovery. To enable this feature, set the oAuthResourceMetadataEnabled option to true and add the OAuthProtectedResourcePlugin to modules/zuplo.runtime.ts. When configured, this enables OAuth clients to find metadata information about how to interact with your OAuth 2.0 protected resources according to RFC 9728.

When the plugin is configured with scopesSupported, the 401 response also lists those scopes in the scope parameter of its WWW-Authenticate header, so MCP clients request exactly the scopes your resource expects instead of every scope the authorization server advertises.

See this document for more information about OAuth authorization in Zuplo.
