Getting Started with API Migration - Portal

Migrate an existing API tutorialZuplo Portal

Import an API into Zuplo and verify that a request through the gateway matches the original backend.

Follow along using

Put Zuplo in front of an existing API by importing its OpenAPI document and forwarding requests to the original backend. You'll test one read-only route before changing any client traffic.

Prerequisites

  • A Zuplo account.
  • Your existing API's OpenAPI document in JSON or YAML and its upstream URL.

Get your existing OpenAPI document

Get the OpenAPI document for the API you want to migrate from its repository, API documentation, or current gateway. Download or export the existing file; you don't need to write a new one for this tutorial.

If you don't have an OpenAPI document, download the

Swagger Petstore OpenAPI document

.

Choose a read-only operation and call it directly on the original API. You'll compare that response with the gateway's response. For Petstore, you can use GET /pet/findByStatus?status=available.

Import and test a route

  1. Create the gateway

    In Projects, click New Project, select API & MCP Gateway, enter migrated-api, and click Create Project.

  2. Import the document

    Open Code → config/routes.oas.json and click Import OpenAPI. Upload your OpenAPI file, review the routes, and click Complete Import.

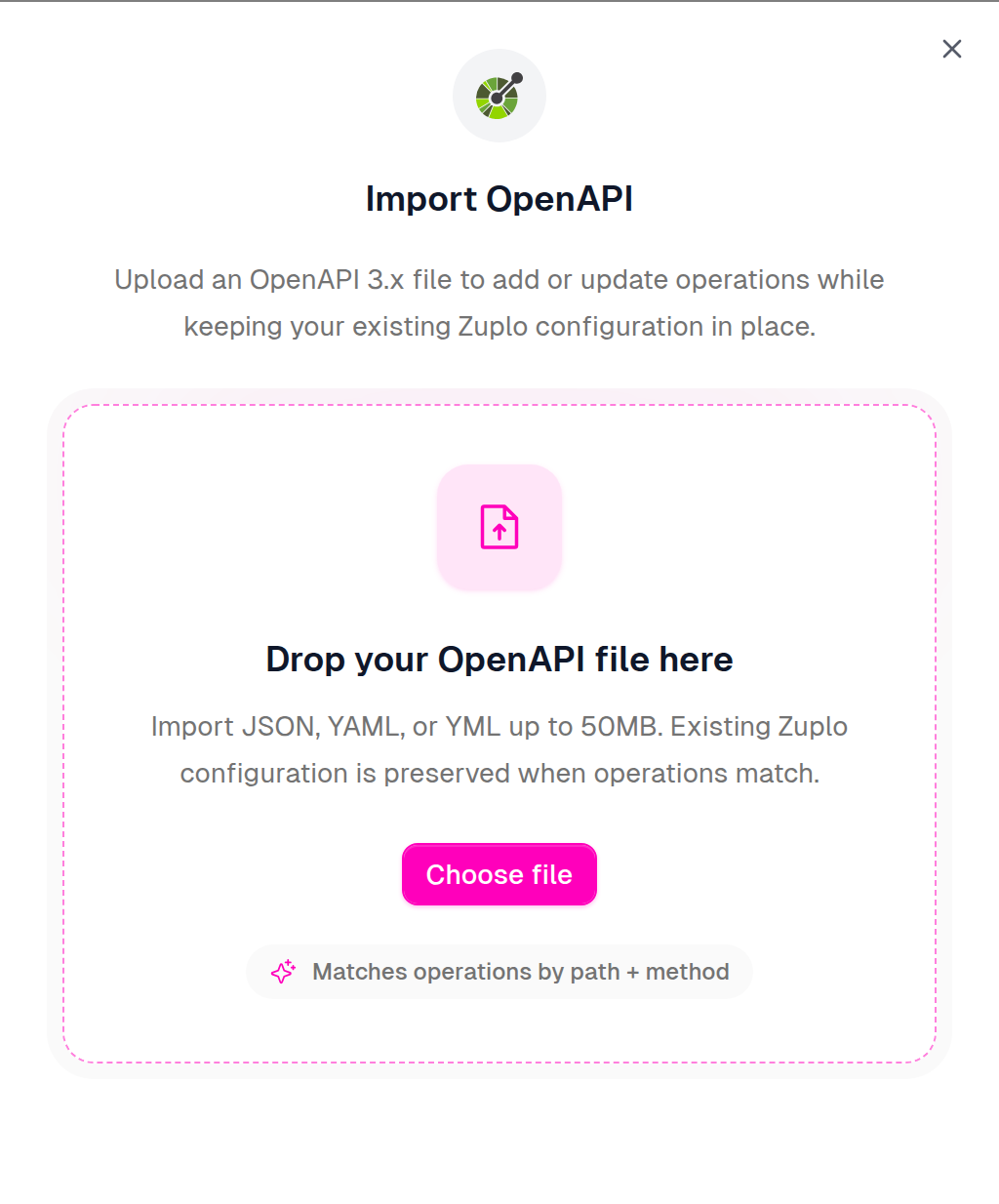

    Import an OpenAPI file in the Route Designer

    The Route Designer should now list your API's routes. Importing an API description doesn't configure its forwarding behavior or enforce its security requirements; configure those next.

  3. Set the upstream handler

    Select the read-only route you chose. Under Request Handler, select URL Forward and set Forward to to your original API's base URL. Save your changes.

    The URL Forward handler appends the request path. Check the imported path before setting the base URL so that any server prefix appears only once. For Petstore, use https://petstore3.swagger.io/api/v3 if the route path is /pet/findByStatus, or https://petstore3.swagger.io if the imported path already starts with /api/v3.

  4. Compare the response

    Click Test next to the route's path, then send a GET request. Expect the same status and response structure as the original API. Include the same query parameters, such as status=available for the Petstore example.

    Copy the gateway request URL from the test dialog and call it from a terminal too:

    TerminalCode
    curl -i "https://YOUR_GATEWAY.zuplo.app/YOUR_ROUTE"

    Replace YOUR_ROUTE with the imported route path and include its query parameters and any required headers. A 404 usually means the route or upstream path differs from the imported path. If forwarding fails, recheck the handler's upstream URL.

  5. Preserve your API's behavior

    For a private API, add the authentication policies your clients require and configure any credentials the upstream requires. OpenAPI security metadata alone doesn't enforce authentication in Zuplo.

    Before migrating real traffic, verify successful and failed requests, query parameters, headers, request bodies, and status codes. Recreate any rate limits or transformations currently handled by your old gateway. See the migration overview for platform-specific migration guides.

  6. Deploy and move a test client

    Follow Deploy to the edge to connect source control and deploy. Repeat your tests using the deployed gateway URL.

    Change one test client's base URL to the gateway and verify its normal workflow. Keep the old endpoint available while you move clients in stages; roll that client back to its previous base URL if checks fail. Move your production domain only after the gateway passes your migration checks.
