Handlers

URL Rewrite Handler

The URL Rewrite handler proxies and rewrites requests to different APIs without writing any code. It provides powerful URL transformation capabilities, allowing you to map request data and parameters to custom URL patterns on other hosts.

Setup via Portal

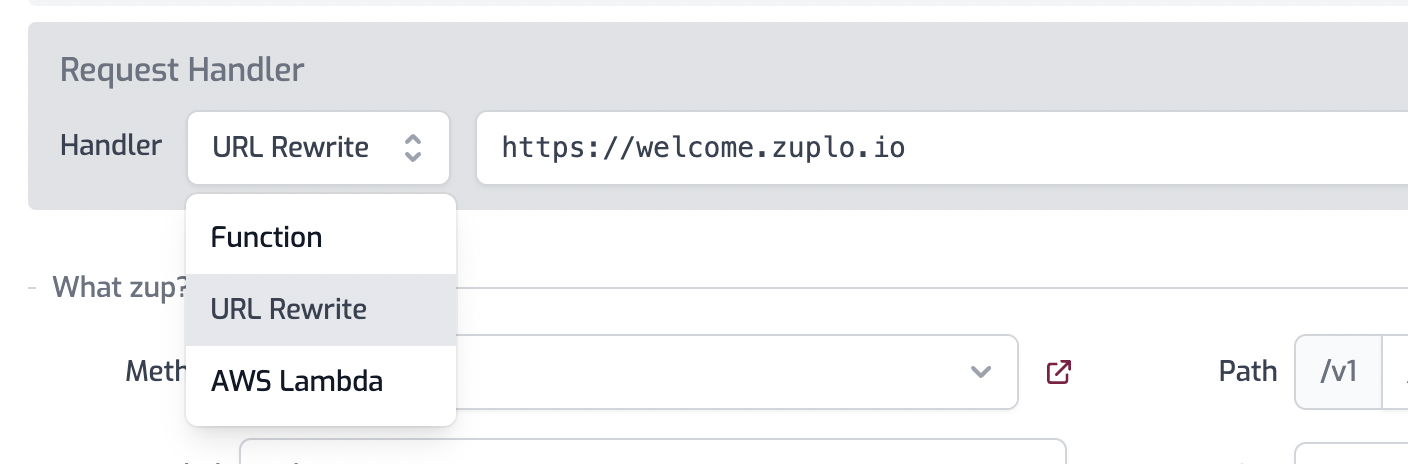

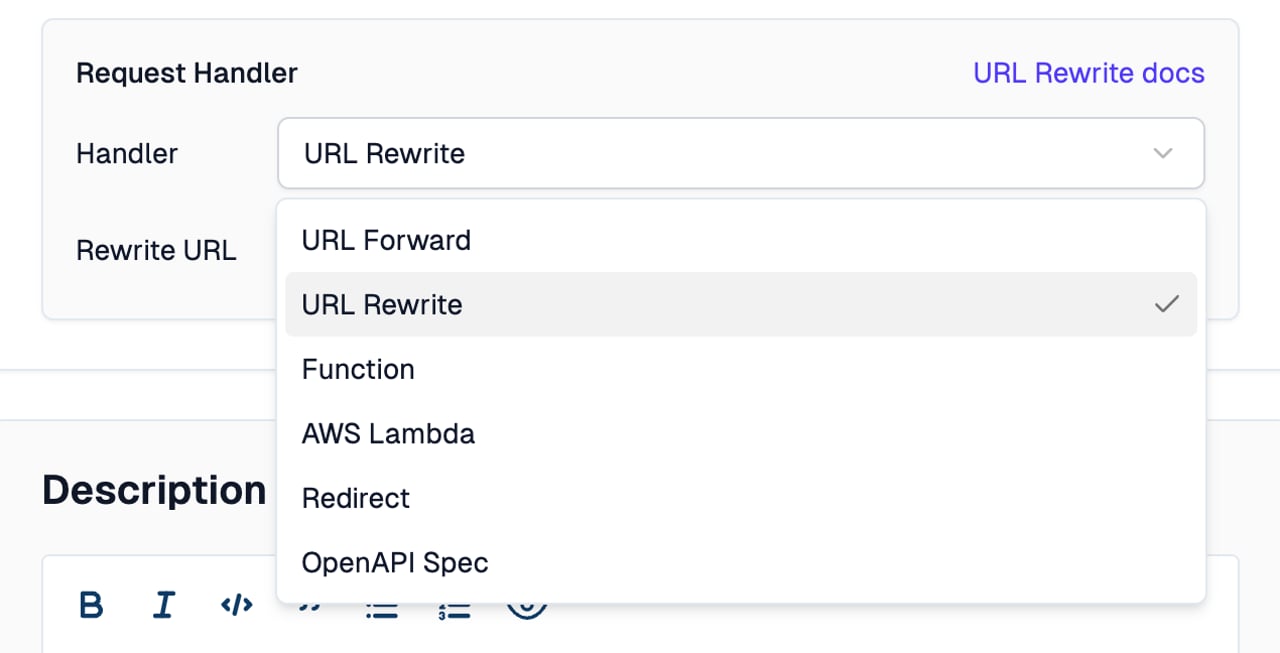

The Rewrite Handler can be added to any route using the Route Designer. Open the Route Designer by navigating to the Files tab then click routes.oas.json. Inside any route, select URL Rewrite from the Request Handlers drop-down.

In the text box enter the URL to rewrite the request. Values can be mixed into the URL string using JavaScript string interpolation syntax. For example:

Code(txt)

https://echo.zuplo.io/${method}/${params.productId}

The following objects are available for substitution:

• env - the environment object, to access Environment Variables
• request: ZuploRequest - the full ZuploRequest object
• context: ZuploContext - the ZuploContext object without functions.
• params: Record<string, string> - The parameters of the route. For example, params.productId would be the value of :productId in a route.
• query: Record<string, string> - The query parameters of the route. For example, query.filterBy would be the value of ?filterBy=VALUE.
• headers: Headers - the incoming request's headers object
• url: string - The full incoming request as a string
• host: string - The host portion of the incoming URL
• hostname: string - The hostname portion of the incoming URL
• pathname: string - The pathname portion of the incoming URL
• port: string - The port portion of the incoming URL
• search - The search portion of the incoming URL

Use the following methods to encode portions of the URL:

• encodeURIComponent: The encodeURIComponent() function encodes a URI by replacing each instance of certain characters with escape sequences.
• e: An alias to encodeURIComponent to help keep URLs more readable. Can be used like ${e(params.productId)}

Example Values

A few examples of the values of various substitutions.

• ${headers.get("content-type")} - "application/json"
• ${host} - "example.com:8080"
• ${hostname} - "example.com"
• ${method} - "GET"
• ${origin} - "https://example.com"
• ${params.productId} - ":productId"
• ${pathname} - "/v1/products/:productId"
• ${port} - "8080"
• ${protocol} - "https:"
• ${query.category} - "cars"
• ${search} - "?category=cars"
• ${url} - "https://example.com:8080/v1/products/:productId?category=cars"
• ${env.BASE_URL} - "https://example.com"

Setup via routes.oas.json

The URL Rewrite handler can also be added manually to the routes.oas.json file with the following route configuration.

Code(json)

"paths": {
  "/rewrite-test": {
    "summary": "Proxy Welcome API",
    "description": "This Route will proxy the welcome.zuplo.io api",
    "x-zuplo-path": {
      "pathMode": "open-api"
    },
    "get": {
      "summary": "Testing rewrite handler",
      "x-zuplo-route": {
        "corsPolicy": "none",
        "handler": {
          "export": "urlRewriteHandler",
          "module": "$import(@zuplo/runtime)",
          "options": {
            "rewritePattern": "https://welcome.zuplo.io"
          }
        },
        "policies": {
          "inbound": []
        }
      }
    }
  }
}

Options

The URL Rewrite handler can be configured via options to support common use-cases.

• rewritePattern (required): The URL pattern template for rewriting requests

  • Type: string
  • Supports JavaScript template interpolation with request context
  • Available variables: env, request, context, params, query, headers, url, host, hostname, pathname, port, search
  • Example: "https://api-${params.version}.example.com/users/${params.id}"

• forwardSearch (optional): Controls whether query parameters are forwarded

  • Type: boolean
  • Default: true
  • When true, query string is automatically included in rewritten URL

• followRedirects (optional): Controls redirect handling behavior

  • Type: boolean
  • Default: false
  • When false, redirects aren't followed - status and location header are returned as received
  • When true, redirects are automatically followed

Examples

Code(json)

// Version-based routing with parameters
{
  "handler": {
    "export": "urlRewriteHandler",
    "module": "$import(@zuplo/runtime)",
    "options": {
      "rewritePattern": "https://api-${params.version}.example.com${pathname}",
      "forwardSearch": true,
      "followRedirects": false
    }
  }
}

// Environment-based backend selection
{
  "handler": {
    "export": "urlRewriteHandler",
    "module": "$import(@zuplo/runtime)",
    "options": {
      "rewritePattern": "${env.BACKEND_URL}/api${pathname}${search}",
      "forwardSearch": false,
      "followRedirects": true
    }
  }
}

// Complex parameter mapping with encoding
{
  "handler": {
    "export": "urlRewriteHandler",
    "module": "$import(@zuplo/runtime)",
    "options": {
      "rewritePattern": "https://backend.com/v2/users/${encodeURIComponent(params.userId)}/data?type=${query.format}",
      "forwardSearch": false
    }
  }
}

Different Backends per Environment

It's common to want a different backend for your production, staging and preview environments. This can be achieved by using environment variables to specify the origin of the backend.

For example,

Code(json)

${env.BASE_PATH}${pathname}

A URL rewrite like this will combine the BASE_PATH environment variable, say https://example.com with the incoming path, for example, /foo/bar to create a re-written URL:

Code(json)

https://example.com/foo/bar
