Getting Started

Step 1 - Setup a Basic Gateway

In this tutorial we'll setup a simple gateway. We'll use a demo API at that acts as a todolist API.

This demo API is protected by an API key (sometimes called a shared secret) that must be provided in an api-key header. Good news - given this is a demo API - the key is provided in the unauthenticated error message.

To get started, sign in to and create a free account. Create a new empty project. Then...

Local Development

Zuplo also supports building and running your API locally. To learn more see the documentation.

1/ Add a route#

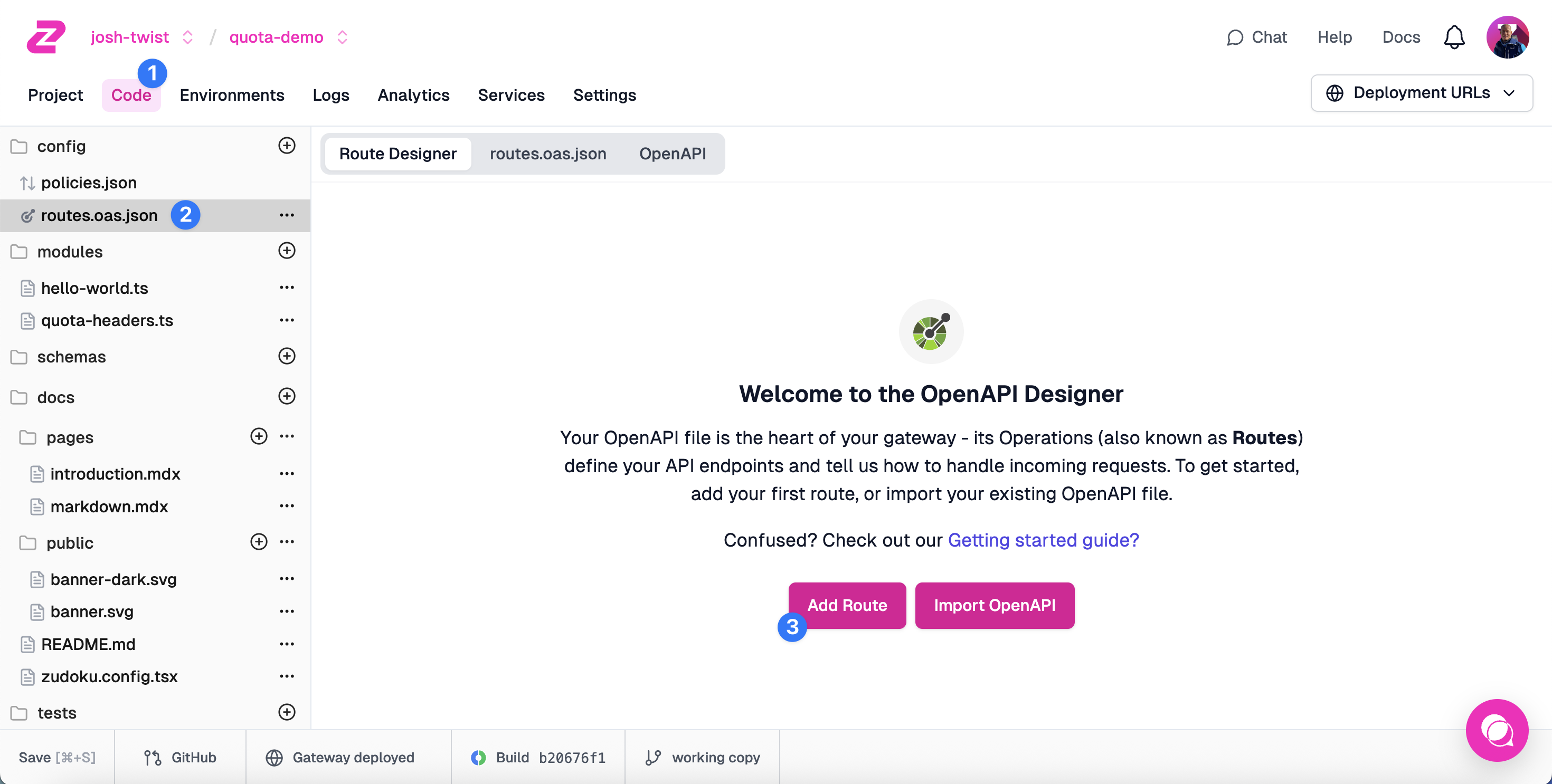

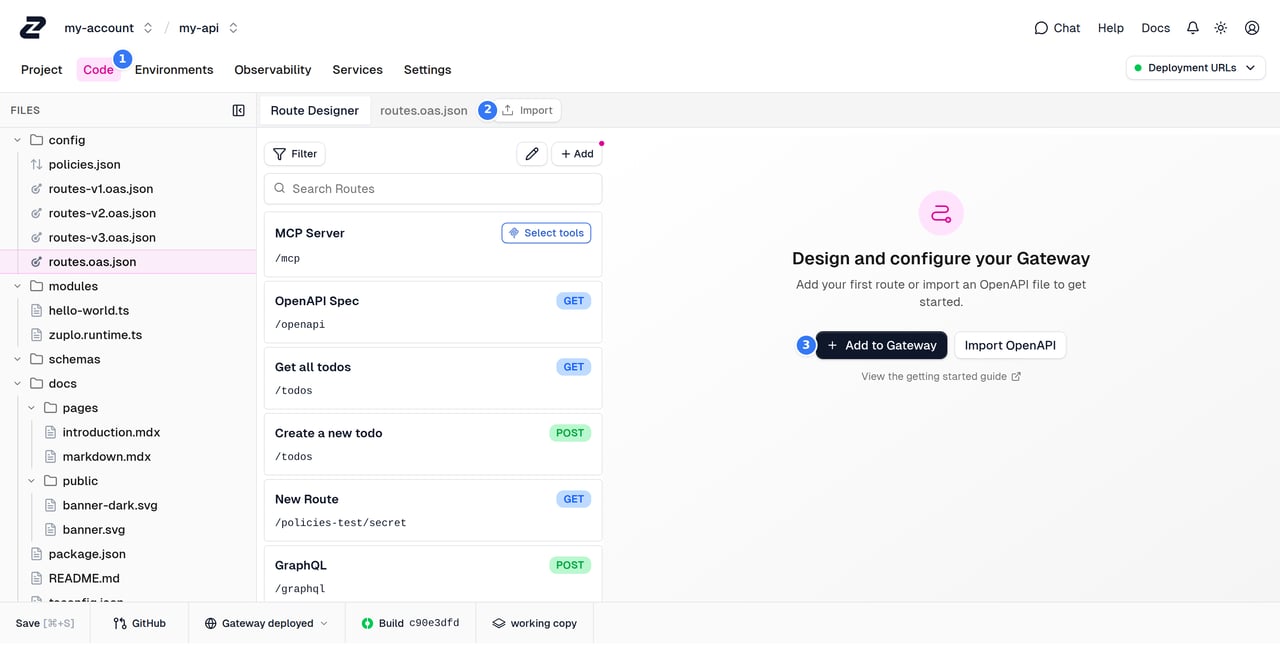

Inside your new project, choose the routes.oas.json file and click Add Route.

Add Route

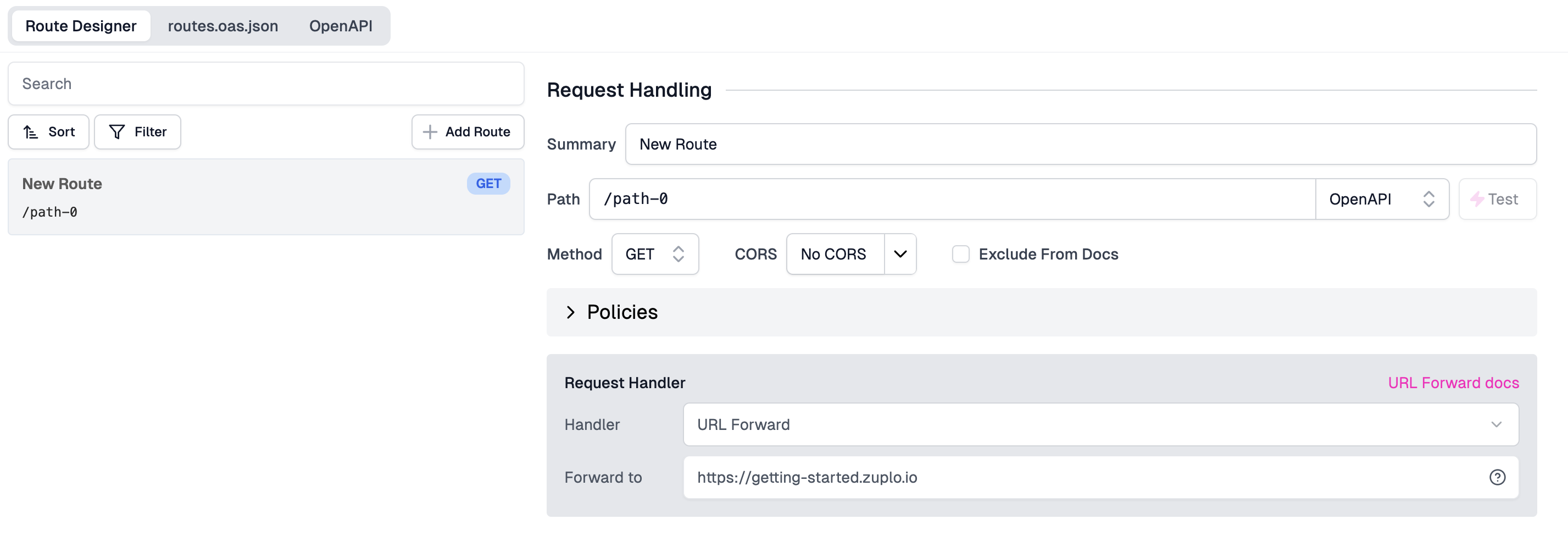

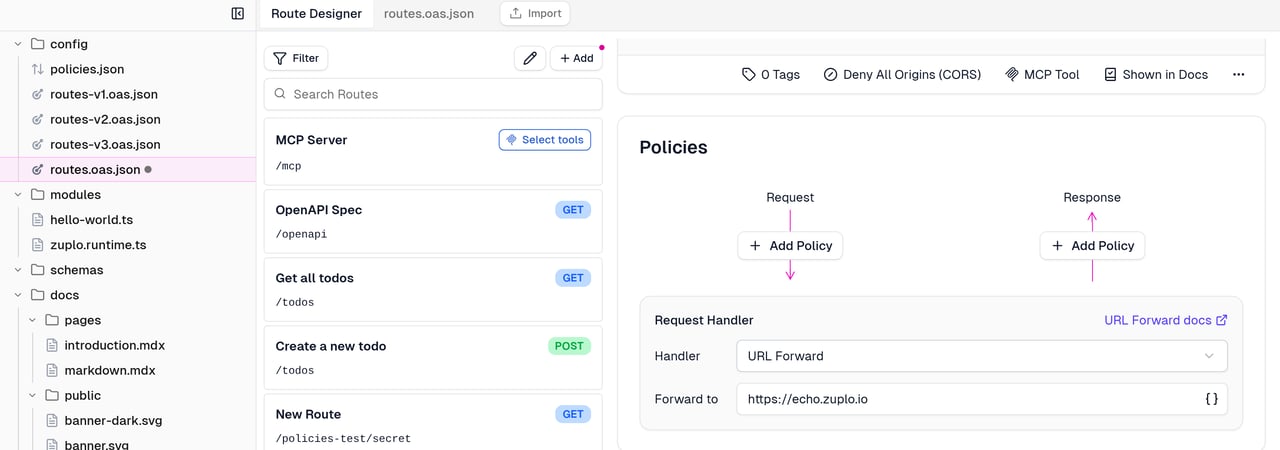

Using the Route Designer, let's configure our first route to handle the GET /todos route.

  • Summary: Get all todos
  • Method: GET
  • Path: /todos
  • URL Forward:

Get all todos

Save your changes (you can click the disk icon next to routes.oas.json or press CMD+S).

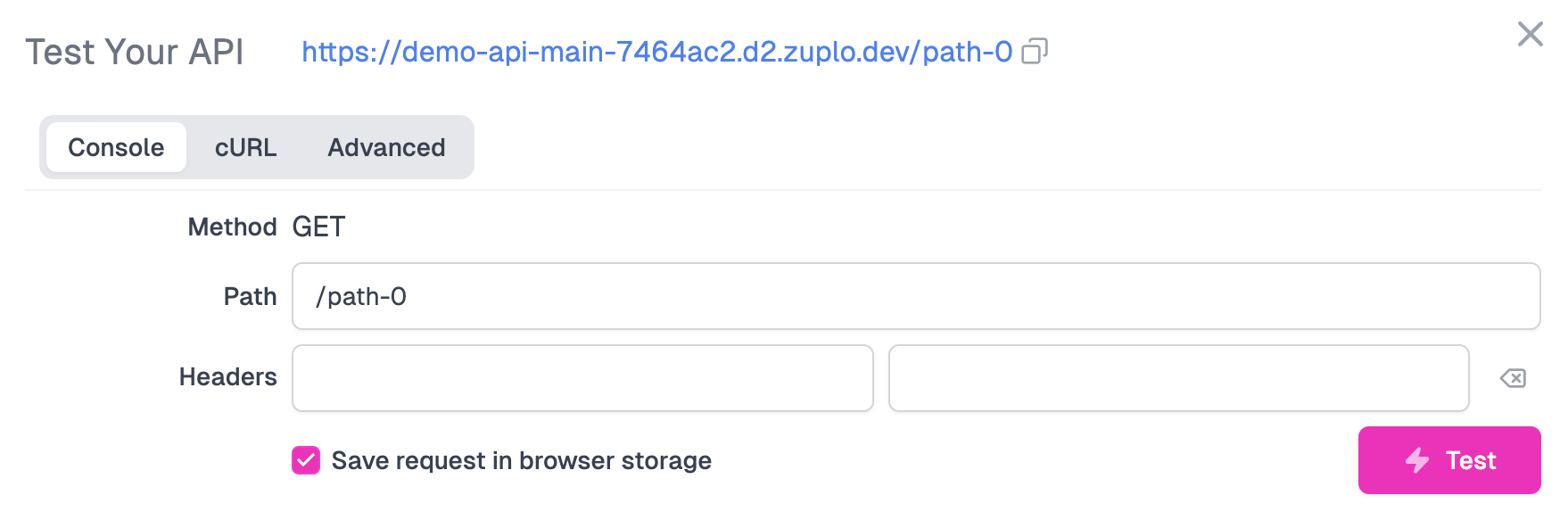

You can quickly test this route by clicking the Test button next to the Path field. You can use the built in test tool or click the URL to open in a new tab.

Test the API

You should receive a 401 Unauthorized that says something similar to

{ "status": 401, "title": "Unauthorized", "detail": "No key or invalid key provided", "type": "", "instance": "/todos", "hint": "This is a demo API that requires authentication. You must add a header 'api-key' with a value '4f0aeaf7-d17f-4b2b-9b71-5177bd194759'" ... }

This is expected because you have not provided the required api-key header. Copy the required api-key value from that error message to your clipboard (e.g. 4f0aeaf7-d17f-4b2b-9b71-5177bd194759).

2/ Set the secret header#

Open the policies section in your route and click Add Policy to the request pipeline.

Add policy

Find the Add or Set Request Header

Find set requests headerpolicy

Configure the policy JSON to set header name to api-key and the value to $env(API_KEY). This tells the policy to read the value from our secure vault used for Environment Variables.

Policy Configuration

Save your changes to routes.oas.json.

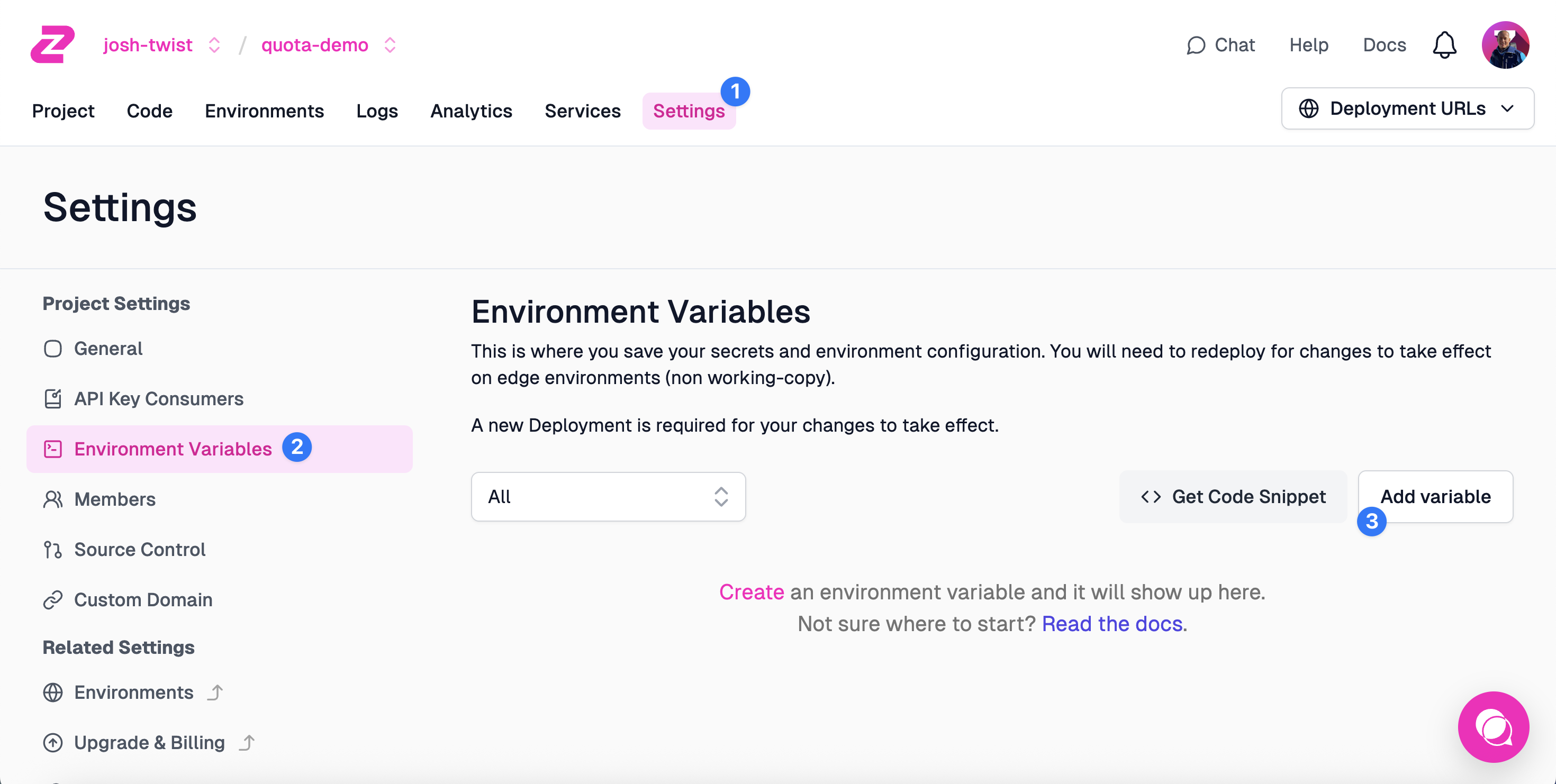

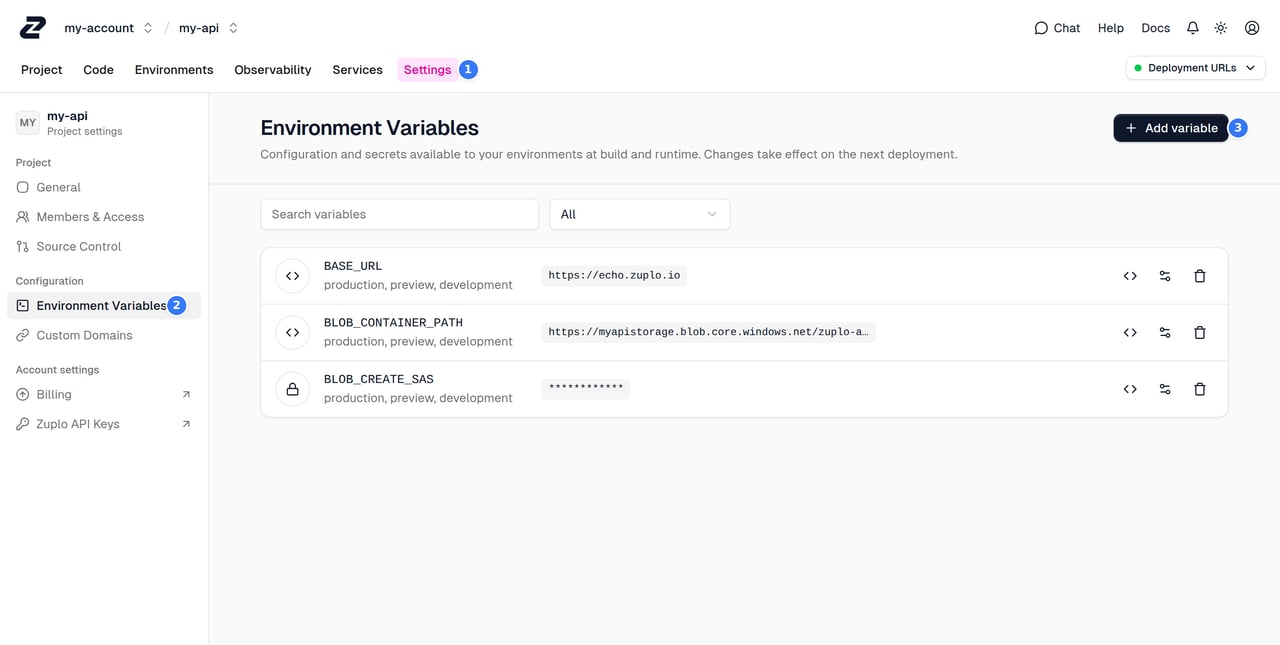

Head over to the Environment Variables screen in settings and click Add new variable.

Add new Environment Variable

Set the name to API_KEY and select is Secret (the demo API key is not really secret but if you use an API key to access your backend, that is an important secret).

New environment variable

3/ Test your API#

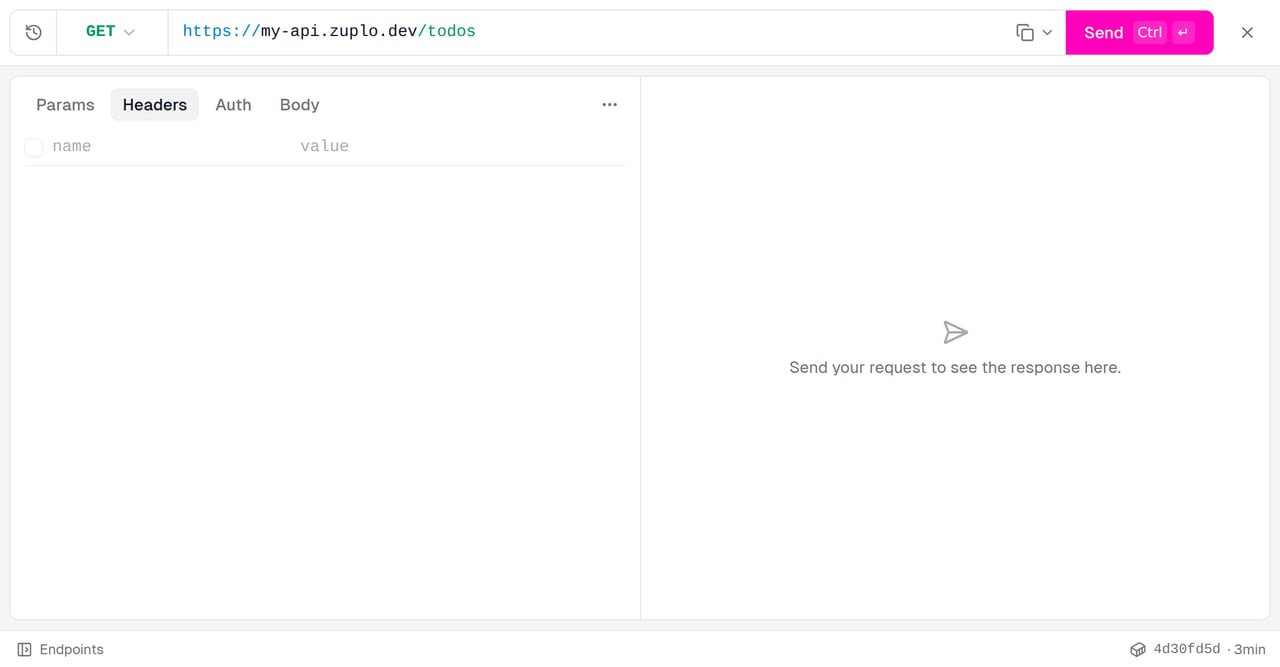

Go back to your route in the Route Designer and click the Test button next to the Path field. Click the Test button in the dialog that opens.

Test API

Congratulations, your gateway is working πŸ‘πŸ‘πŸ‘

4/ BONUS - put the base URL in an environment variable#

When working with Zuplo, you'll eventually want each environment to use a different backend (e.g. QA, staging, preview, production etc).

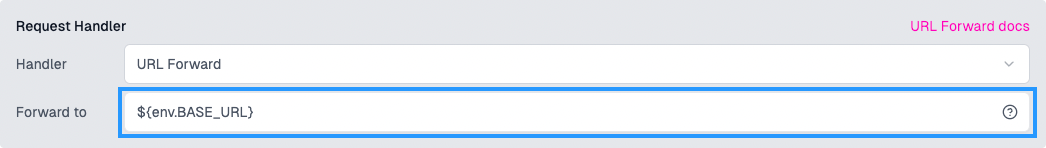

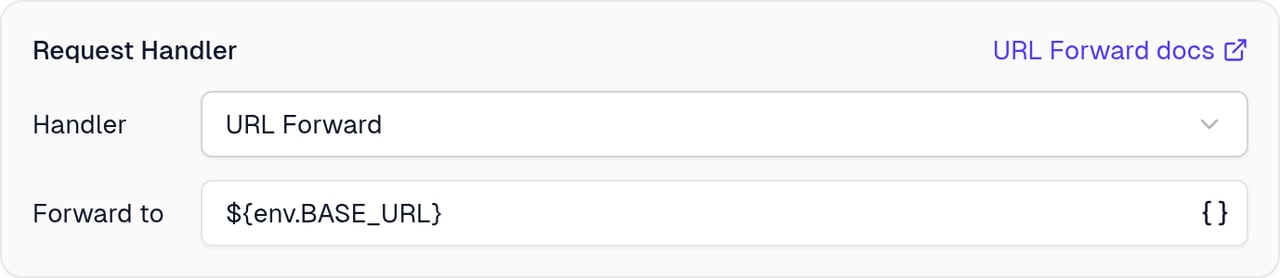

Change the URL Forward value to read the base URL from the Environment Variables system by setting the value to ${env.BASE_URL}.

BASE_URL from Environment

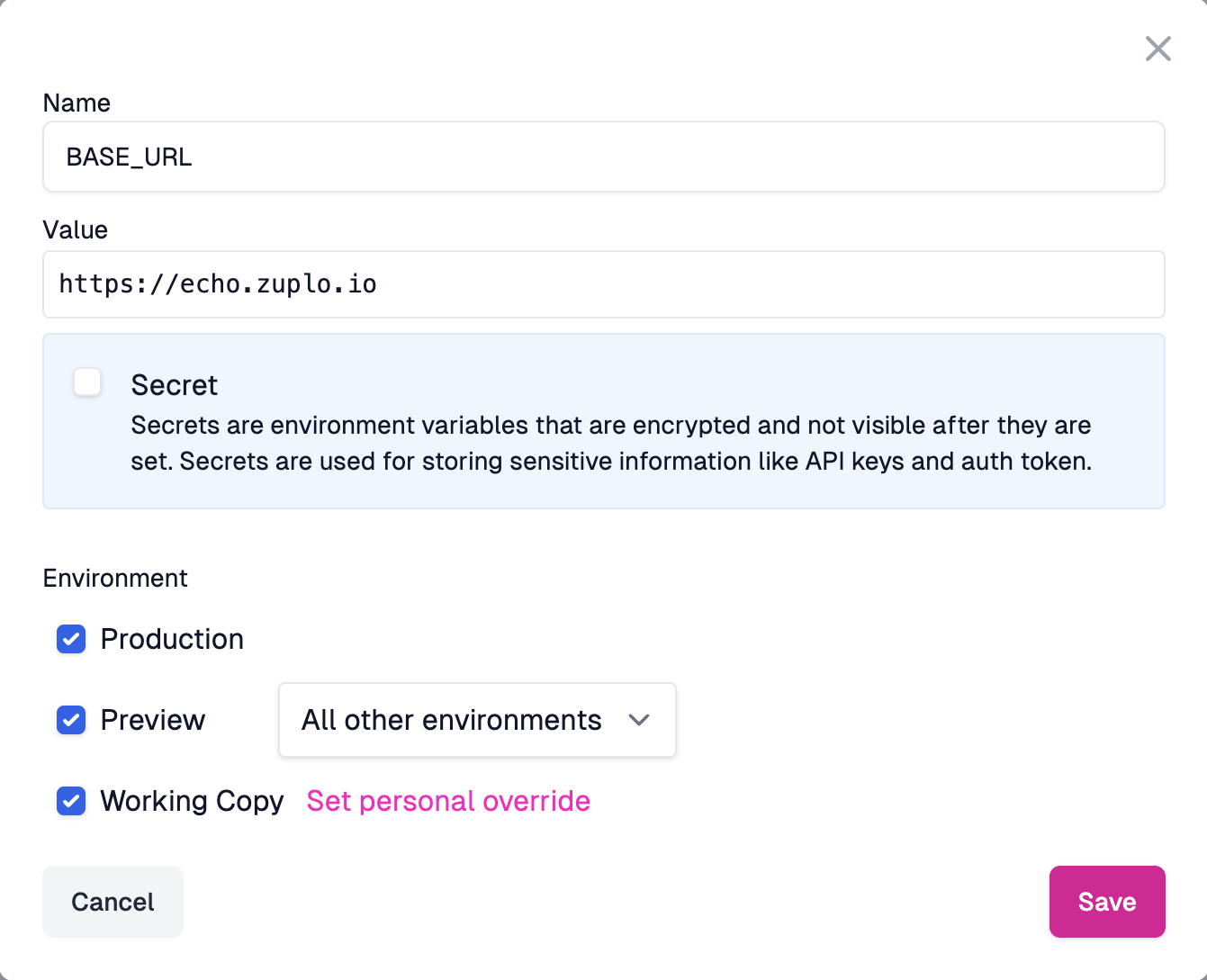

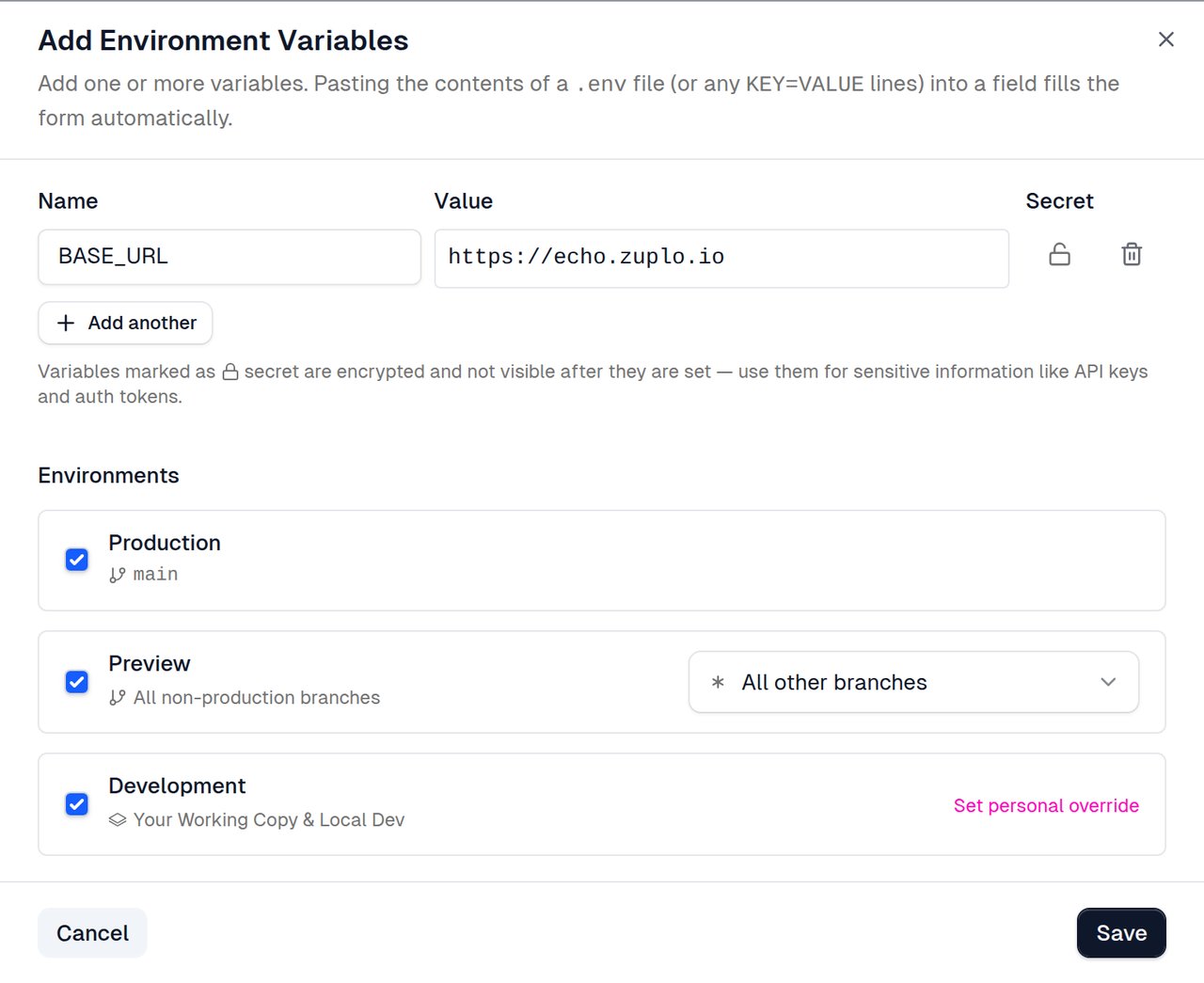

Add another Environment Variable called BASE_URL. This is typically not a secret, there's no need to hide this from your colleagues.

BASE_URL Env Variable

Save all your changes and test your route again.

NEXT Try step 2 - add API key authentication to your API.
