Getting Started with MCP Server - Portal

Create a new project

In the Zuplo Portal, open Projects, click New Project, select API & MCP Gateway, enter a project name, and click Create Project.

Import an OpenAPI document

Let's import an OpenAPI document. You can download this one here todo-openapi.json.

Select the Code tab (1), then choose the routes.oas.json file (2) and choose Import OpenAPI (3).

Click Complete Import to import the routes.

Now save your changes (press Save at bottom left of CMD+S).

Test the Get all todos route

The first route you imported is called Get all todos. Select it and click the Test button next to the Path field.

A test dialog will open, click Test and you should see a 200 OK response with a few todos.

This is the basic API we're going to turn into a fully functioning MCP Server.

Create an MCP Server

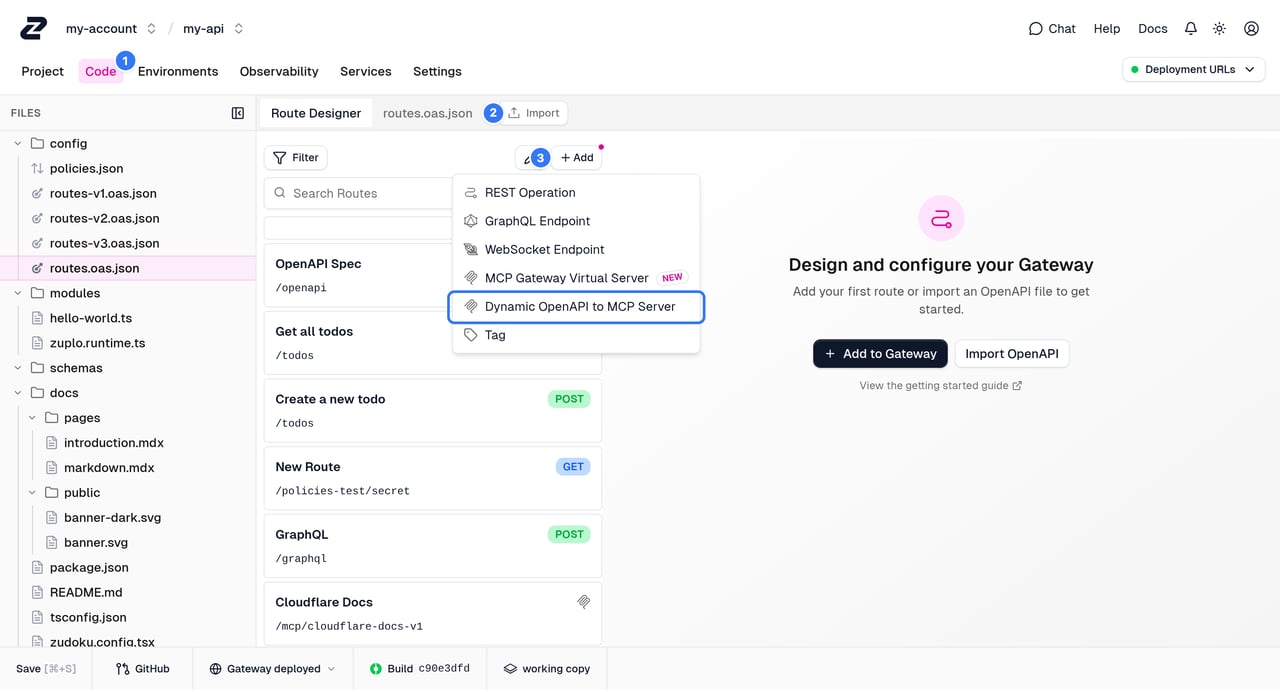

On your routes.oas.json file, choose Add and then Dynamic OpenAPI to MCP Server (3)

A new route will appear. Confirm the following values:

• Summary: enter MCP Server
• Method: choose POST
• Path: enter /mcp (the path can be anything, but /mcp is common)

Click the Select Tools option for your new MCP Server endpoint (1).

You should see the MCP tools dialog. Check the tools from your *.oas.json files, that you want to surface in your MCP Server.

Click Update Tools (1)

Now click Save at the bottom left. Congratulations, you just published your first MCP Server!

Connect your MCP Client

You can use any MCP client you like. We like the OpenAI platform's playground.

Go to platform.openai.com/playground (you'll need an OpenAI account).

Click Create... next to the Tools label and choose MCP Server.

Click Add new to register your custom MCP Server with the playground.

You'll need the URL of your MCP server - you can get this by going back to Zuplo, clicking on your MCP Server route and then clicking Test. At the top you'll see a button to copy the URL to your clipboard.

Back to the OpenAI playground...

Enter the URL of your MCP Server

Enter a label, try todos

Choose None for Authentication as we didn't add auth to our API

Click Connect

If successfully connected, you'll see your 'tools' listed in the playground.

No need to deselect any tools, let's add them all!

Test your MCP Server via the playground

Let's prompt the LLM in the playground. Ask the model to

list out all the todos

The model should recognize that it needs to call the todos MCP Server and will ask for your approval.

Click Approve and you should see the todos listed 👏
